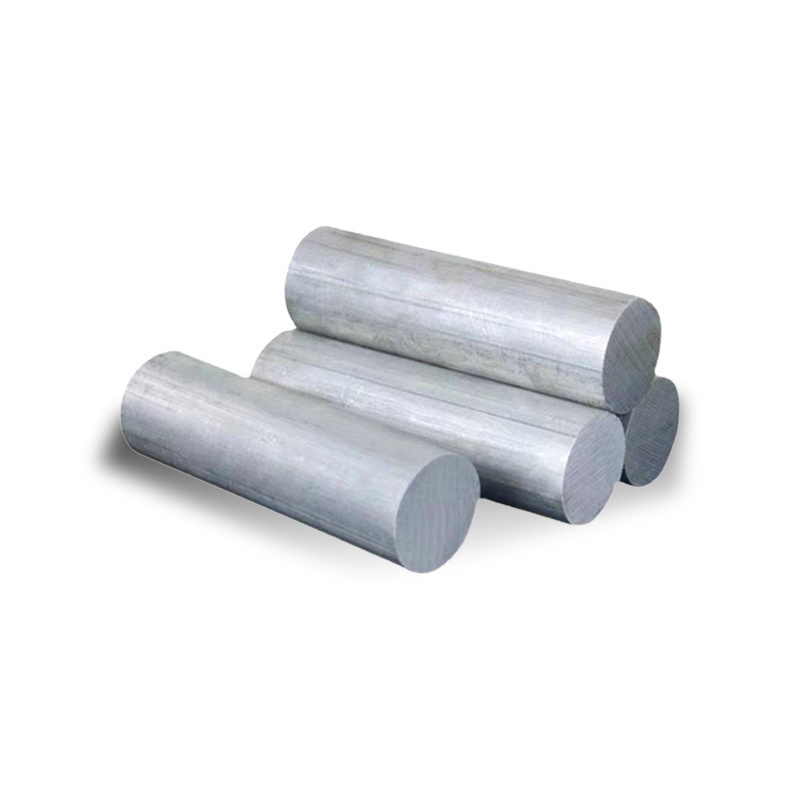

Monel R-405 Bar
- Commodity name： Monel R-405 Bar
Keyword:
Monel R-405 Bar
- PRODUCT DESCRIPTION
-
Monel R-405 Bar Description
Monel R405 is a chromium-cobalt based superalloy with high strength and good corrosion resistance. It consists of elements such as chromium, cobalt, tungsten and aluminum. In addition, it contains small amounts of elements such as carbon, niobium, iron, and copper. These elements make it have excellent corrosion resistance and high strength. Monel R405 bar shows good corrosion resistance in strong alkali and medium strength sulfuric acid, hydrochloric acid, nitric acid and other solutions. Moreover, it has excellent corrosion resistance in seawater and chloride environments. Therefore, Monel R405 bar is often used in offshore engineering, such as offshore oil drilling platforms, seawater desalination equipment and so on. Lastly, It is able to maintain high strength and good oxidation resistance at high temperatures.
Product Parameters
Product Name
Monel R-405 Bar
Outer Diameter
Round Bar
4mm-500mm
Hexagon Bar
18mm-57mm (11/16″ to 2-3/4″)
Square Bar
18mm-47mm (11/16″ to 1-3/4″)
Flat Steel
1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Si
S
Mn
Fe
Ni
Cu
0.3 max
0.5 max
0.025 - 0.060
2.0 max
2.5 max
63.0 min
28.0 - 34.0
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
85
50
15
Physical Performance
Units
Temperature in°C
Density
8.80 g/cm³
Room
Specific Heat
0.102 Kcal/kg.C
21°
Melting Range
1300-1350°C
-
Modulus of Elasticity
179 KN/mm²
Room
Electrical Resistivity
51.1 µΩ.cm
21°
Coefficient of Expansion
14.2 µm/m °C
21 - 100°
Thermal Conductivity
22.0 w/m-° K
21°
Scope of Application
Used in marine engineering, chemical and hydrocarbon processing equipment, gasoline tanks and fresh water tanks, crude oil distillers, degassing heaters, boiler feed water heaters and other heat exchangers, valves, pumps, shafts, accessories and fasteners, Industrial heat exchangers, chlorinated solvents, crude oil distillation columns, etc.
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
Customer Reviews
Our products have won unanimous praise from many customers.
Application field
The products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields.
