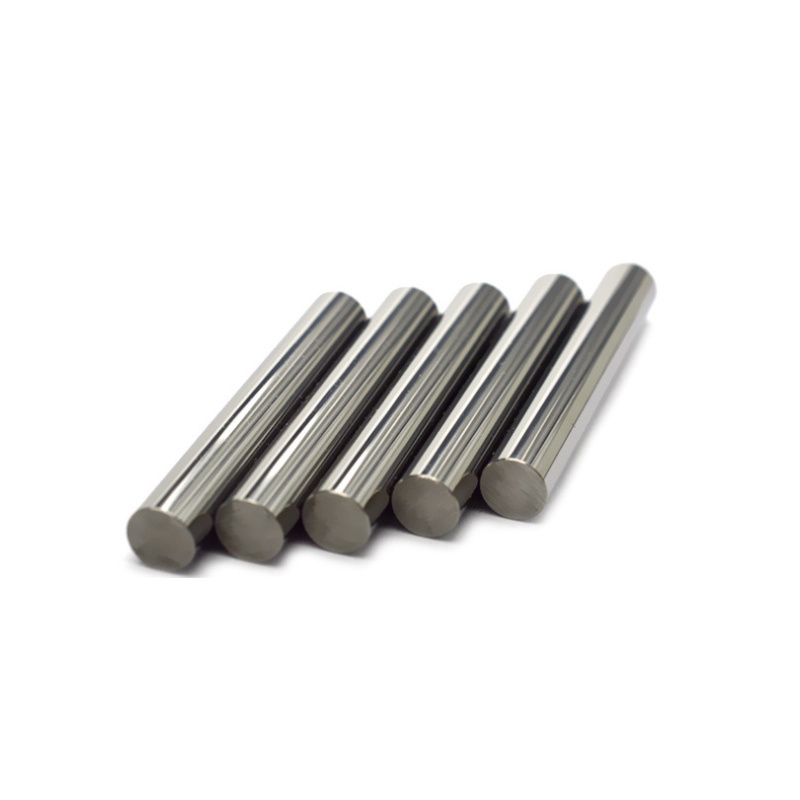

Monel 400 Bar

Monel 400, also known as UNS N04400 or German grade 2.4360, is a high-performance alloy whose chemical composition and excellent mechanical properties enable it to perform well in various harsh environments. Whether in the marine engineering or chemical industries, Monel 400 bar plays an indispensable role, providing reliable protection and support for various equipment and components.

Get a Quote

Monel 400 Bar Description

Monel 400 is a corrosion-resistant alloy with the largest dosage, the most wide range of uses, and excellent comprehensive properties. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, as well as excellent corrosion resistance against hot concentrated alkali liquid. It is also resistant to corrosion from neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracking aside from good cutting performance. Monel 400 bars are commonly adopted in many corrosive applications, particularly in the marine and chemical industries. Monel 400 can be easily machined through conventional machining operations as a relatively soft material suitable for thermoforming into almost any shape.

Product Parameters

Product Name		Monel 400 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling

Chemical Composition

Nickel, min^A	Copper	lron, max	Manganese, max	Carbon, max	Silicon, max	Sulfur, max
63.0%	28.0% - 34.0%	2.5%	2.0%	0.3%	0.5%	0.024%

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
85	35	30

Physical Performance

	Units	Temperature in°C
Density	8.14 g/cm³	Room
Specific Heat	0.105 Kcal/kg.C	Room
Melting Range	1370-1400°C	-
Modulus of Elasticity	196 KN/mm²	20°
Electrical Resistivity	113 µΩ.cm	25°
Coefficient of Expansion	14.1 µm/m °C	25 - 100°
Thermal Conductivity	11.1 w/m-° K	25°

Scope of Application

Used in marine engineering, chemical and hydrocarbon processing equipment, gasoline tanks and fresh water tanks, crude oil distillers, degassing heaters, boiler feed water heaters and other heat exchangers, valves, pumps, shafts, accessories and fasteners, Industrial heat exchangers, chlorinated solvents, crude oil distillation columns, etc.

Factory appearance

It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.

Application areas

Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
