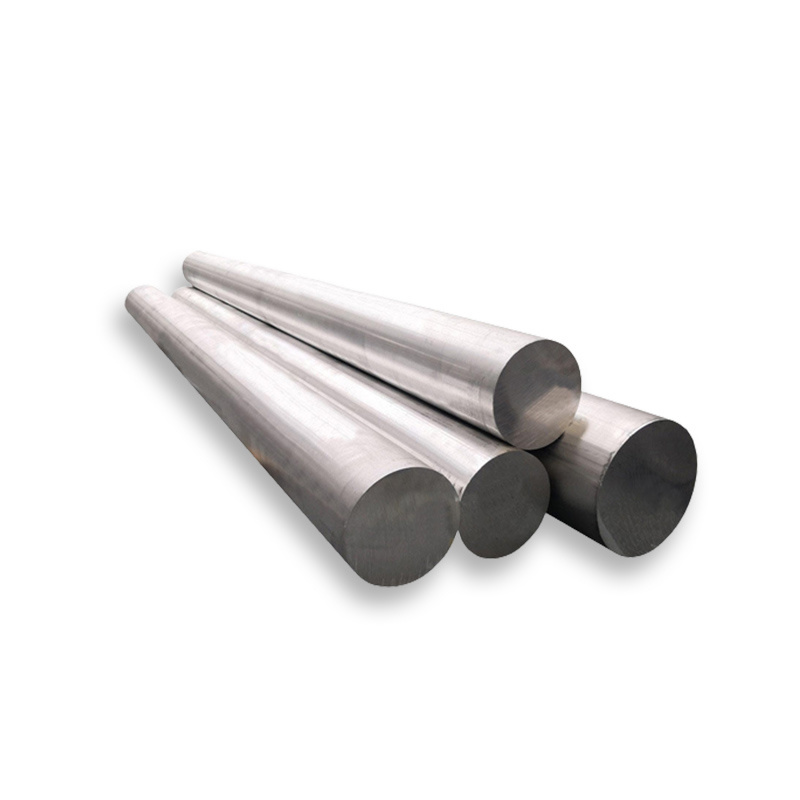

Inconel 601 Bar

Inconel 601 bar is made of a high-strength, corrosion-resistant nickel-based alloy that is widely used in various high-temperature equipment. As a material with good mechanical properties and corrosion resistance, Inconel 601 is widely used in aviation, chemical industry, marine engineering and other fields.

Get a Quote

Inconel 601 Bar Description

Inconel 601 is a nickel-based high-temperature alloy mainly composed of nickel, chromium, aluminum and iron. Among them, nickel accounts for the majority, with a content generally above 58%, while chromium and aluminum account for about 19% and 1.0% respectively. In addition, it also contains small amounts of elements such as copper and manganese, which can enhance the strength and corrosion resistance of the material. Inconel 601 bar has excellent high temperature strength, corrosion resistance and oxidation resistance. At high temperatures, its strength and hardness can be maintained at a high level, while having good plasticity and toughness. In an acidic environment, Inconel 601 bar shows good corrosion resistance and can effectively resist erosion by corrosive media such as chloride ions and sulfides.

Product Parameters

Product Name		Inconel 601 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling

Chemical Composition

C	Al	Si	S	Cr	Mn	Fe	Ni	Cu
0.1 max	1.0-1.7	0.5 max	0.015 max	21.0-25.0	1.0 max	Remainder	58.0-63.0	1.0 max

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
80	30	30

Physical Performance

	Units	Temperature in°C
Density	8.11 g/cm³	Room
Specific Heat	0.107 Kcal/kg.C	20°
Melting Range	1360-1411°C	-
Modulus of Elasticity	206.5 KN/mm²	20°
Electrical Resistivity	118 µΩ.cm	20°
Coefficient of Expansion	13.75 µm/m °C	20 - 100°
Thermal Conductivity	11.2 w/m-° K	20°

Scope of Application

The 601 characteristics of Inconel make it widely used in the fields of heat treatment, chemical treatment, pollution control, aerospace and power generation. Therefore, it is not recommended to use the alloy 601 in a strongly reduced sulfur-containing environment.

Factory appearance

It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.

Application areas

Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.

Customer Reviews

Our products have won unanimous praise from many customers.

Application field

The products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields.
