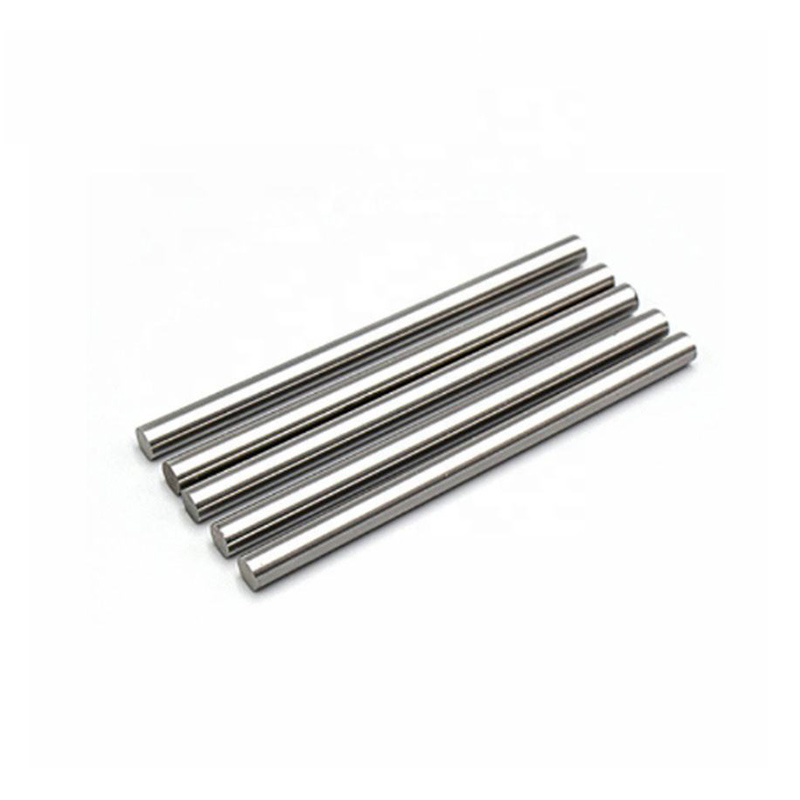

Inconel 600 Bar
- Commodity name： Inconel 600 Bar
Keyword:
Inconel 600 Bar
- PRODUCT DESCRIPTION
-
Inconel 600 Bar Description
Inconel 600 alloy is mainly composed of nickel and chromium. In addition, the alloy contains a smaller proportion of iron, as well as trace amounts of silicon, carbon and manganese. This unique chemical composition gives Inconel 600 bars excellent corrosion resistance and mechanical strength at high temperatures. Inconel 600 alloy exhibits excellent mechanical properties over a wide temperature range and is capable of use at temperatures up to 1093°C (2000°F) while maintaining good creep and fracture resistance. Its corrosion resistance is particularly outstanding and it can resist a variety of corrosive media, including seawater, organic acids, and high-temperature and high-pressure steam environments.
Product Parameters
Product Name
Inconel 600 Bar
Outer Diameter
Round Bar
4mm-500mm
Hexagon Bar
18mm-57mm (11/16″ to 2-3/4″)
Square Bar
18mm-47mm (11/16″ to 1-3/4″)
Flat Steel
1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Si
S
Cr
Mn
Fe
Ni
Cu
0.15 max
0.5 max
0.015 max
14.0 - 17.0
1.0 max
6.0 - 10.0
72.0 min
0.5 max
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
110
85
10
Physical Performance
Units
Temperature in°C
Density
8.47 g/cm³
Room
Specific Heat
0.106 Kcal/kg.C
22°
Melting Range
1354-1413°C
-
Modulus of Elasticity
214 KN/mm²
22°
Electrical Resistivity
103 µΩ.cm
Room
Coefficient of Expansion
13.3 µm/m °C
20 - 100°
Thermal Conductivity
14.9 w/m-° K
20°
Scope of Application
The average utilization of this nickel alloy includes the chemical, pulp and paper, aerospace, nuclear engineering and heat treatment industries.
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
Customer Reviews
Our products have won unanimous praise from many customers.
Application field
The products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields.
