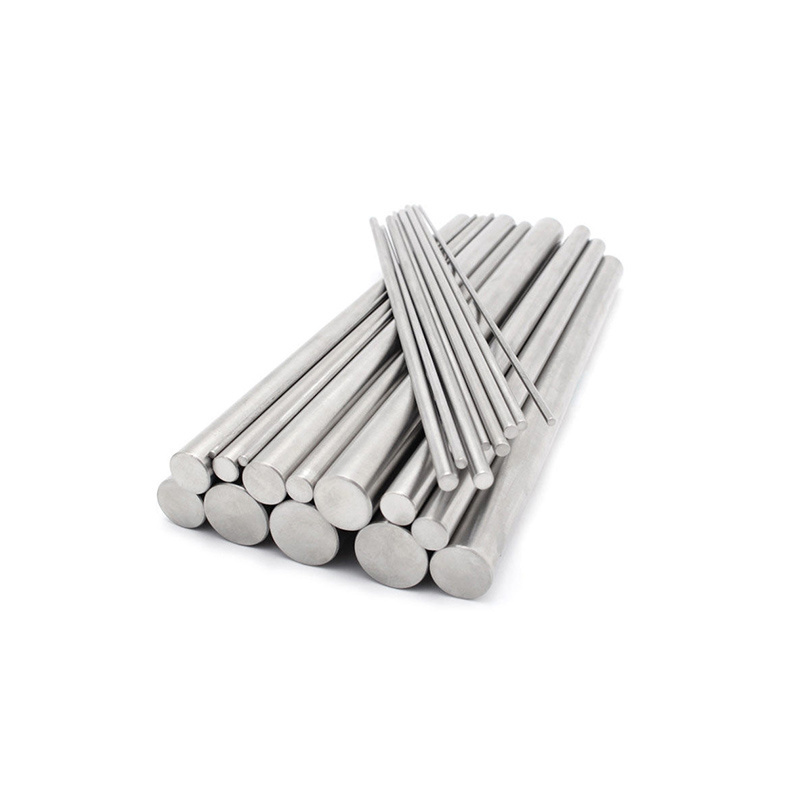

Incoloy 800H / 800HT Bar
- Commodity name： Incoloy 800H / 800HT Bar
Keyword:
Incoloy 800H / 800HT Bar
- PRODUCT DESCRIPTION
-
Incoloy 800H / 800HT Bar Description
Incoloy 800H is a nickel-based alloy containing approximately 22% chromium, 39% iron, and 33% nickel, with the balance being carbon, silicon, manganese and other elements. This alloy has excellent high temperature resistance as its maximum operating temperature can reach 1100°C, and it also has good toughness and ductility at room temperature. In addition, Incoloy 800H can maintain a long service life in high temperature environments with excellent oxidation resistance and corrosion resistance. Incoloy 800H bar has good processing properties and can be used for hot and cold processing. During thermal processing, the heating temperature and cooling rate should be controlled to avoid cracks and deformation.
Product Parameters
Product Name
Incoloy 800H / 800HT Bar
Outer Diameter
Round Bar
4mm-500mm
Hexagon Bar
18mm-57mm (11/16″ to 2-3/4″)
Square Bar
18mm-47mm (11/16″ to 1-3/4″)
Flat Steel
1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Al
Si
S
Ti
Cr
Mn
Fe
Ni
Cu
0.1 max
0.15 - 0.60
1.0 max
0.015 max
0.15 - 0.60
19.0 - 23.0
1.5 max
39.5 min
30.0 - 35.0
0.75 max
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
75
30
30
Physical Performance
Units
Temperature in°C
Density
7.94 g/cm³
Room
Specific Heat
0.11 Kcal/kg.C
21°
Melting Range
1357-1385°C
-
Modulus of Elasticity
196.5 KN/mm²
20°
Electrical Resistivity
98.9 µΩ.cm
20°
Coefficient of Expansion
14.4 µm/m °C
20 - 100°
Thermal Conductivity
11.5 w/m-° K
20°
Scope of Application
Used in industrial furnaces, heat treatment equipment, chemical and petrochemical processing, superheaters and reheaters in power plants, pressure vessels, heat exchangers, etc.
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
Customer Reviews
Our products have won unanimous praise from many customers.
Application field
The products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields.
