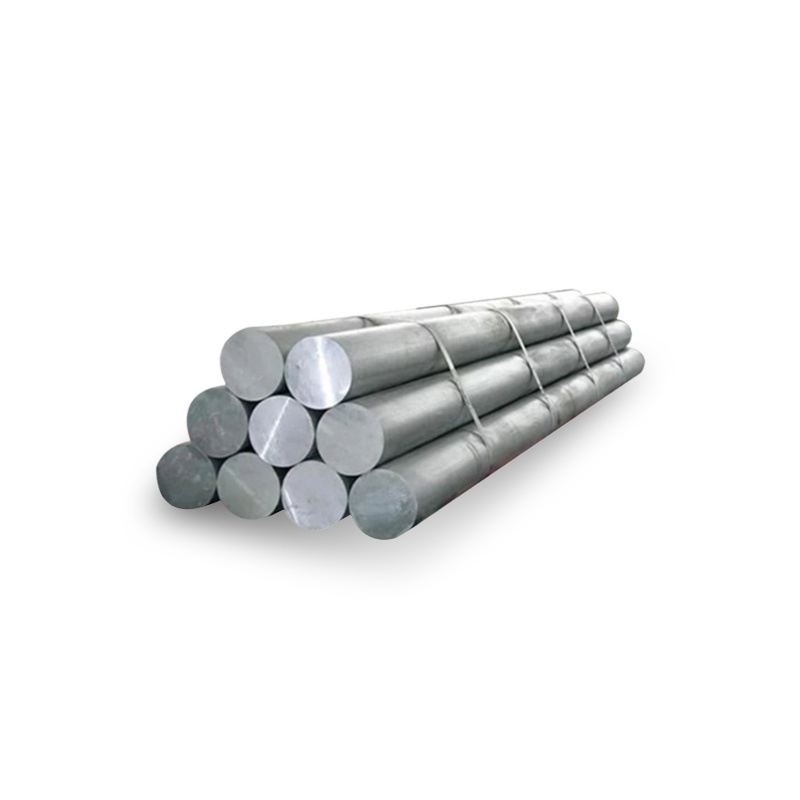

Hastelloy X Bar
- Commodity name： Hastelloy X Bar
Keyword:
Hastelloy X Bar
- PRODUCT DESCRIPTION
-
Hastelloy X Bar Description
Hastelloy X bar has excellent corrosion resistance and can be used for a long time in various corrosive environments. This is because a large number of alloying elements are added to the alloy, such as nickel, chromium, molybdenum, etc. These elements form a dense oxide film on the surface of the alloy, which can effectively resist the erosion of various chemical substances. Hastelloy X bar has excellent high-temperature strength and can maintain high strength and hardness in high-temperature environments. This is because the alloying elements in the alloy can form strengthening molybdenum, which improves the tensile strength and yield strength of the alloy. Hastelloy X has good processing properties and can be used for casting, forging, rolling and other processing processes.
Product Parameters
Product Name
Hastelloy X Bar
Outer Diameter
Round Bar
4mm-500mm
Hexagon Bar
18mm-57mm (11/16″ to 2-3/4″)
Square Bar
18mm-47mm (11/16″ to 1-3/4″)
Flat Steel
1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Si
P
S
Cr
Mn
Fe
Co
Ni
Mo
W
0.05 - 0.15
1.0 max
0.04
0.03
20.5 - 23.0
1.0 max
17.0 - 20.0
0.5 - 2.5
Remainder
8.0 - 10.0
0.2 - 1.0
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
95
35
35
Physical Performance
Units
Temperature in°C
Density
8.22 g/cm³
22°C
Specific Heat
0.116 Kcal/kg.
Room
Melting Range
1260-1355°C
-
Modulus of Elasticity
205 KN/mm²
Room
Electrical Resistivity
118.3 µΩ.cm
22°
Coefficient of Expansion
13.9 µm/m °C
26 - 93°
Thermal Conductivity
9.1 w/m-° K
21°
Scope of Application
Hastelloy X is used in gas turbines, petrochemicals, industrial furnaces, heat treatment equipment, nuclear engineering, jet engine combustion chambers, cabin heaters, turbine exhaust components, etc.
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
Customer Reviews
Our products have won unanimous praise from many customers.
Application field
The products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields.
