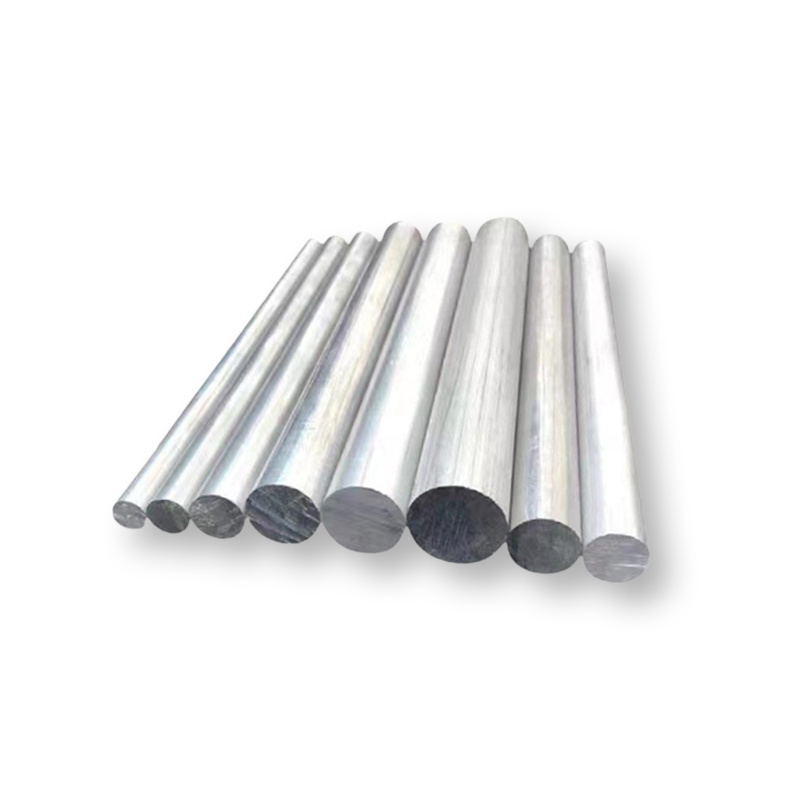

Hastelloy B-3 Bar
- Commodity name： Hastelloy B-3 Bar
Keyword:
Hastelloy B-3 Bar
- PRODUCT DESCRIPTION
-
Hastelloy B-3 Bar Description
Hastelloy B3 is a nickel-based high-temperature alloy, mainly composed of nickel, molybdenum, cobalt and other elements. This alloy material is optimized on the basis of Hastelloy B2. Improving the thermal stability of the material significantly enhances the corrosion resistance, while also effectively improving the hot forming and cold forming performance. Hastelloy B3 bars have been increasingly used in the production and manufacturing of chemical equipment. Besides, Hastelloy B3 material has many unique properties. Its high elongation provides favorable conditions for cold forming operations. Compared to austenitic stainless steel, Hastelloy B3 bar is harder and therefore requires greater pressure during cold forming or step forming processes.
Product Parameters
Product Name
Hastelloy B-3 Bar
Outer Diameter
Round Bar
4mm-500mm
Hexagon Bar
18mm-57mm (11/16″ to 2-3/4″)
Square Bar
18mm-47mm (11/16″ to 1-3/4″)
Flat Steel
1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Al
Si
P
S
Ti
V
Cr
Mn
Fe
Co
Ni
Cu
Zr
Nb
Mo
Ta
W
Not MO
0.01 max
0.5 max
0.10 max
0.03 max
0.01 max
0.2 max
0.2 max
1.0 - 3.0
3.0 max
1.0 - 3.0
3.0 max
65.0 min
0.2 max
0.1 max
0.2 max
27.0 - 32.0
0.2 max
3.0 max
94.0 - 98.0
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
110
51
40
Physical Performance
Units
Temperature in°C
Density
9.22 g/cm³
Room
Specific Heat
0.089 Kcal/kg.C
Room
Melting Range
1370-1418°C
-
Modulus of Elasticity
216 KN/mm²
Room
Electrical Resistivity
137 µΩ.cm
Room
Coefficient of Expansion
10.6 µm/m °C
25 - 100°
Thermal Conductivity
11.2 w/m-° K
Room
Scope of Application
B- 3 is used in chemical processes, vacuum furnaces, mechanical parts in reduced pressure environments, etc.
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
Customer Reviews
Our products have won unanimous praise from many customers.
Application field
The products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields.
